ZinCo Sloped Elements
ZinCo Support Bracket TSH80/TSH100
Support bracket made of stainless steel. Designed for the installation of the heavy duty eaves profiles and shear barriers for sloped roofs. Installed in combination with eaves profile TRP 80 or TRP 140. Bracket needs to waterproofed. Maximum load per bracket: TSH 80: 150 kg - TSH100: 300 kg. Length: approx 40 cm. Including 3 - 8 mm screw holes.
Size of Delivery
Piece
Piece
Product
TSH80
TSH100
Art.nr.
9563
9565
ZinCo Shear-Resistant Bracket Shear Fix LF300
Shear-resistant bracket to secure sloped green roof assemblies. Made of solid stainless steel. Installed in combination with eaves profile TRP 80 or TRP 140. Bracket needs to be waterproofed. Length: approx. 40 cm. Height: Approx. 100 mm. Weight: approx. 1.6 kg. Load capacity: max. 300 kg/bracket.
Size of Delivery
Piece
Product
LF 300
Art.nr.
9568
ZinCo Shear Fix LF600
Shear-resistant bracket to secure green roof assemblies on steep slope applications. Made of solid stainless steel. Installed in combination with eaves profile TRP 80 or TRP 140. Bracket needs to be waterproofed. Length: approx. 140 mm. Height: Approx. 100 mm. Weight: approx. 1.6 kg. Load capacity: max. 600 kg/bracket.
Size of Delivery
Piece
Product
LF 600
Art.nr.
9569

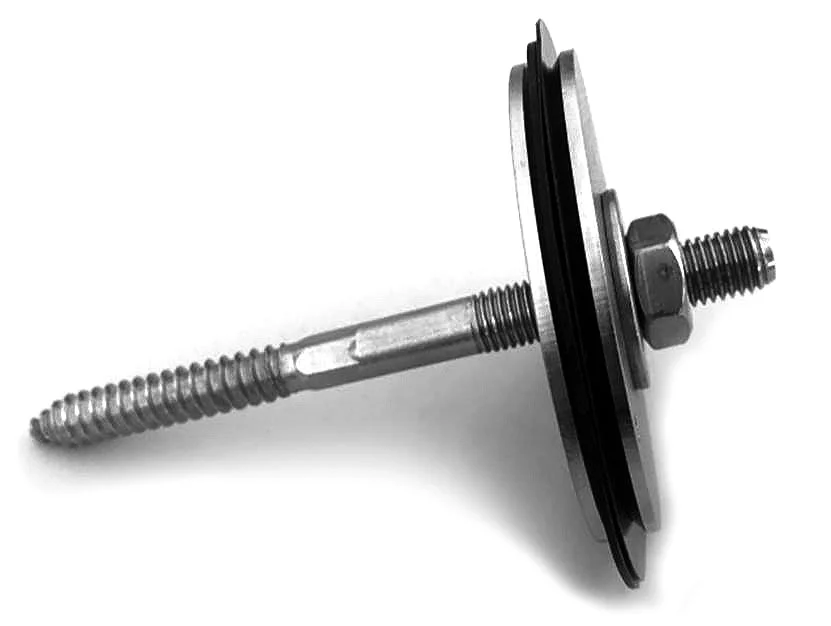

ZinCo Shear Fix LF150
Shear-resistant screw anchor for low sloped green roof assemblies. Made of solid stainless steel. Installed in combination with eaves profile KL100/120. Bracket needs to be waterproofed in. Bolt length: approx. 150 mm. Flange diameter: 70 mm. Load capacity: max. 150 kg/bracket.
Size of Delivery
Pack of 5 Pieces
Pack of 25 Pieces
Product
LF 150
LF 150
Art.nr.
956705
956720
