Component Data Sheets
Pedestals & Accessories
ZinCo Elefeet® E-Series
Adjustable pedestal made of polypropylene. Designed for pavers or wood decking on flat roofs with a deeper build-up height. Including spacers, load distribution plate (diam.: approx. 20 cm), extension pieces and 8% slope ring. Max. load bearing capacity: 500 kg/pedestal. Sizes: see product list.
Size of Delivery
27-39mm - box of 78
38-60mm - box of 60
60-106mm - box of 42
106-196mm - box of 36
12mm - box of 120
22mm - box of 120
67mm - box of 90
Product
E 27
E 38
E 60
E 106
A 12
A 22
A 67
Art.nr.
9660
9661
9662
9663
9664
9665
9666
Elefeet Elering Er 6
Stackable pedestals made of recycled polypropylene with integrated 3mm wide joint spacers for an easy laying of paving slabs, for levelling facade channels and as support plate in the Elefeet® Support Rail System (= Elefeet® Rail Support Plate incl. screws, Order No. 960053).
Elefeet ® Support Rail System
The Elefeet® Support Rail System is based on extruded lightweight aluminium profiles, material EN AW 6060 T66, with corresponding galvanised steel connectors, which in combination with Elefeet® pedestals allow for quick installation of a stable terrace substructure. Particularly suitable also for concrete or natural stone paving as well as wood or WPC decking without stable edging all around.
Size of Delivery
Piece
Product
ZinCo Elefeet Support Rail
Art.nr.
960000
ZinCo Elefeet® H-Series
Made of polypropylene, approved according to DIN 4102-1, class B2, installation underneath entirely stable enclosed walkways of concrete or natural stone slab paving according to Load Class Z as per EN 1991-1-1-1 (balconies, roof terraces). Vertically adjustable to level out unevenness, best suitable for surfaces without slope to ensure dry bases. With integrated 3 mm wide joint spacer and integrated inclination compensation.
ZinCo Elefeet Cantiliver Arm Support
Cantiliver arm support or edge retainer made of galvanized steel. Designed to support paver edge pieces where it is not possible to use a full pedestal. Used in combination with Elefeet. Width: approx. 125 mm. Length: approx. 800 or 175 mm. Including anti-slip strip.
Size of Delivery
0.80 m length
0.175 m length.
Product
Arm
Edge
Art.nr.
9658
9695

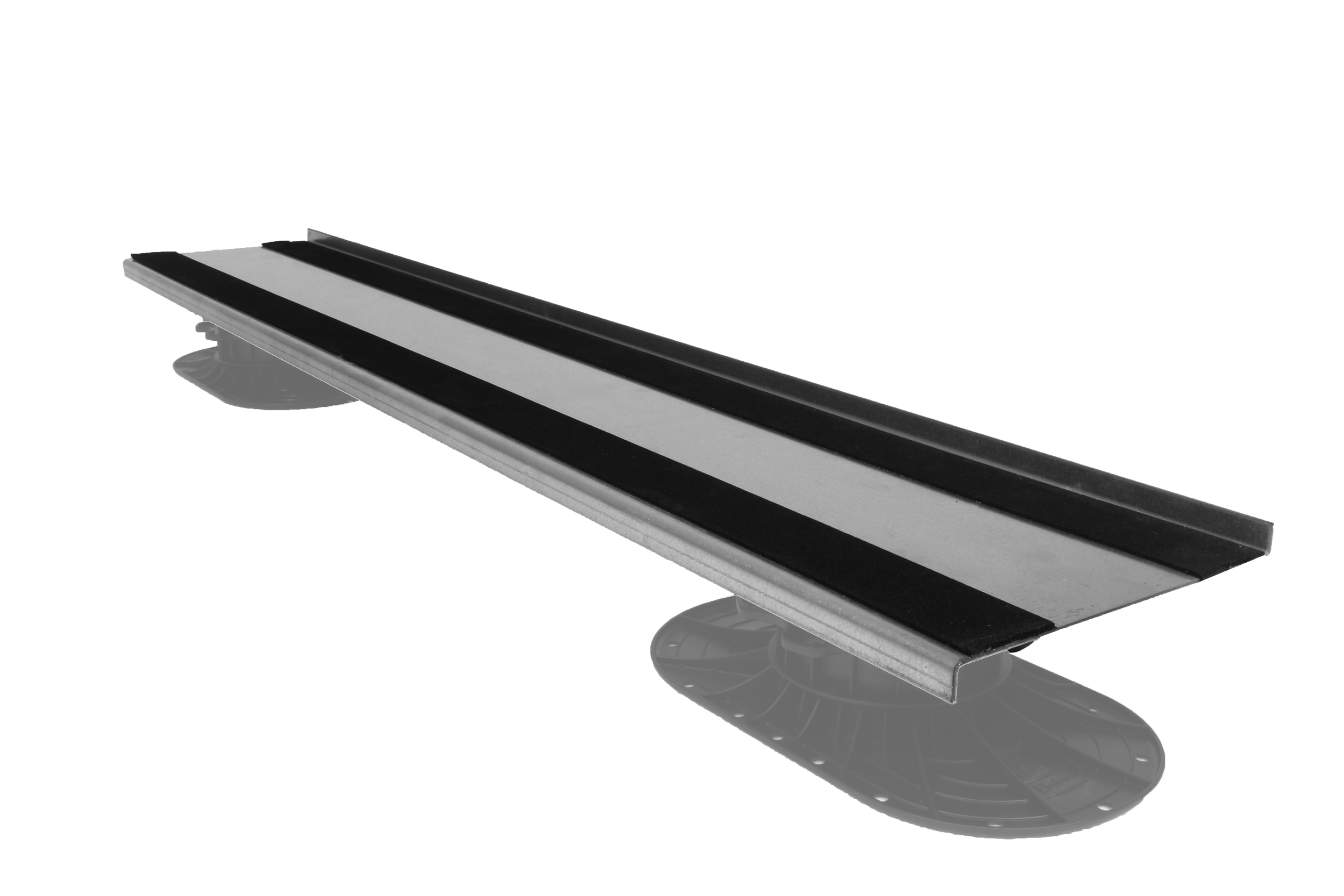

ZinCo Elefeet Mitre Cut Support
Mitre cut support made of galvanized steel. Designed to support paver edge pieces that are cut on an angle and where it is not possible to use a pedestal. Width: approx. 170 mm. Length: approx. 200 mm. Including anti-slip strip. Used in combination with Elefeet pedestals.
Size of Delivery
2 m length
Product
Support
Art.nr.
9657
ZinCo Terrace Grill TR-F/FR-F
Terrace grill or facade grill made of galvanized steel. Opening size: 44 mm x 11 mm. Designed in combination with the Elefeet pedestal for areas with a higher water accumulation. Sizes: see product list.
Size of Delivery
0.40m x 0.40m. x 40mm
0.40m x 0.40m. x 50mm
0.50m x 0.50m. x 50mm
Product
TR-F 40-4
TR-F 40-5
TR-F 50-5
Art.nr.
4210
4213
4215
ZinCo Spacers K3 / K4
Spacers with base plate for placement between individual pavers. With removable leg. Thickness: 3 mm or 5 mm. Height: 11 mm. Used for permeable pavement.
Size of Delivery
3 mm thick - 300 pce
5 mm thick - 300 pce
Product
K3
K5
Art.nr.
9624
9623
Size of Delivery
27-39mm - box of 78
38-60mm - box of 60
60-106mm - box of 42
106-196mm - box of 36
12mm - box of 120
Product
H 25
H 35
H 65
H 145
A 80
Art.nr.
9770
9771
9772
9773
Size of Delivery
Box of 100 pieces
Product
ER 6
Art.nr.
9667
