ZinCo Root Barrier & Slip Sheets
ZinCo Root Barrier WSF40
Root barrier made of high density polyethylene for extensive green roofs - Bitumen and polystyrol resistant - Without plasticize - tear-proof - UV-stabilized. Thickness: 0,36 mm. Weight: 330 g/m2. (Optional item if non root-resistant waterproofing used.)
Size of Delivery
Approx. 8.00 m x 25.00 m roll
Approx. 6.25 m x 20.00 m roll
Approx. 3.00 m x 33.50 m roll
Product
WSF40
WSF40
WSF40
Art.
1040
1041
1043

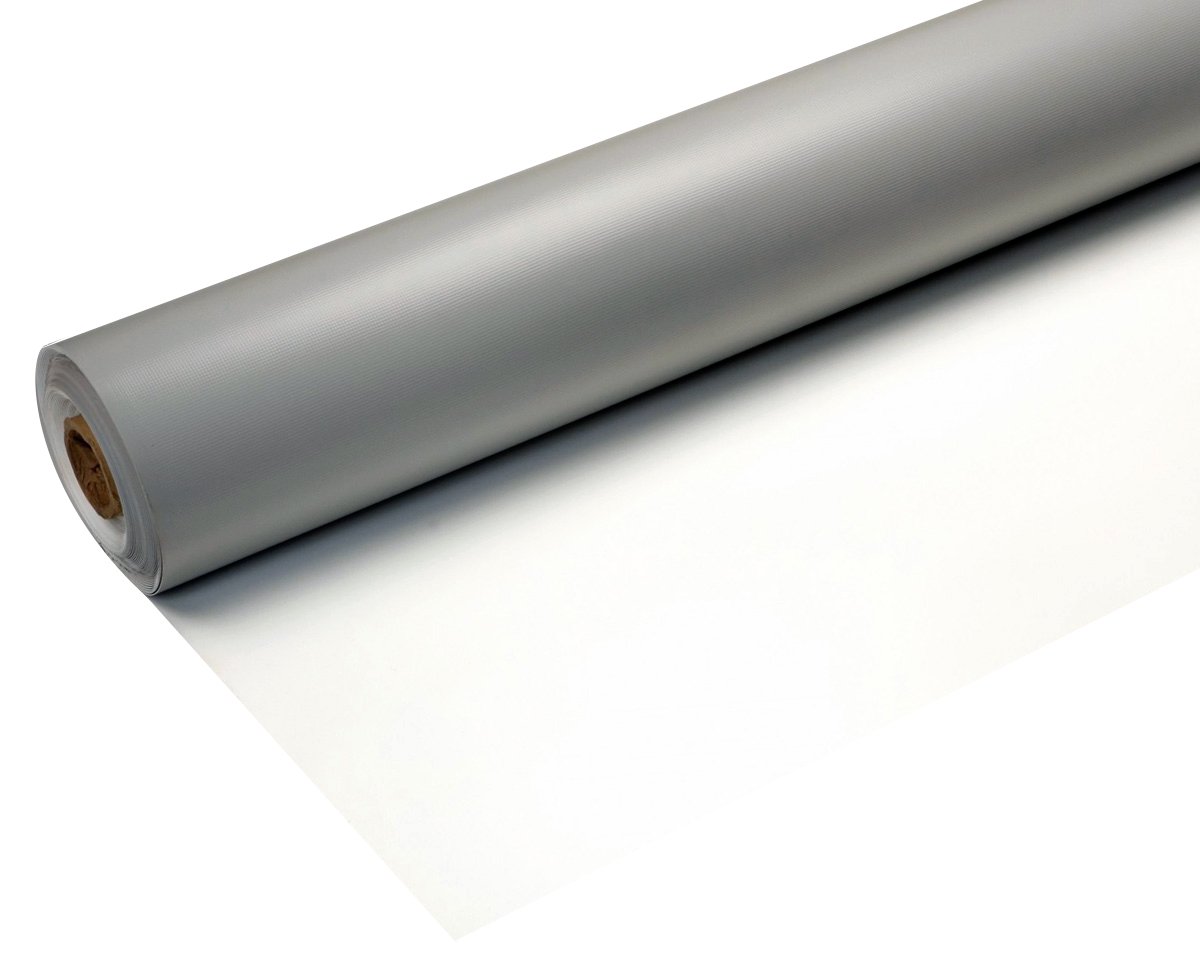

ZinCo Root Barrier WSB 100-PO
Root barrier for intensive green roofs made of flexible polyolefin (FPO), polyester scrim reinforced, resistant to bitumen, flexible at low temperatures, root resistance tested according to the German FLL method of 2002.- Hot Air Weldable - UV-stabilized - Cold-applied. Thickness: 1.10 mm. Weight: 1.13 kg/m2.
Size of Delivery
Approx. 2.44 m x 30.50 m roll
Product
WSB 100
Art.
1084
ZinCo Separation & Slip Sheet TGF 20
Separation and slip sheet made of high density polyethylene sheet for intensive green roofs, walkways and driveways. Designed to separate the heavy duty drainage elements from the waterproofing membrane. Bitumen and polystyrol resistant - Without plasticizer - UV-stabilized. Thickness: 0.20 mm. Weight approx. 190 g/m2.
Size of Delivery
Approx. 8.00 m x 25.00 m roll
Approx. 3.00 m x 33.50 m roll
Product
TGF 20
TGF 20
Art.
1020
1022
ZinCo Diffusion Membrane TGV 21
Scrim sheet made of thermal consolidated polypropylene. Designed as a breathable separation sheet between the rigid insulation and the green roof system on inverted roofs. Bitumen resistant - Biologically and chemically neutral. Vapor opening size Sd ‹0,01 m) Thickness: 0,55 mm. Weight: 80 g/m2.
Size of Delivery
Approx. 1.60 m x 250.00 m roll
Approx. 1.60 m x 50.00 m roll
Product
TGV 21
TGV 21
Art.
2180
2185
