ROOF GARDEN

Floradrain® FD60

Endless possibilities

A multifunctional green roof with a high capacity for water retention, allowing you to include a wider variety of plants.

Features:

  • Supports lawns, perennials, shrubs and even trees

  • Can include paths, terraces, driveways or playgrounds

  • Structures can be built directly on the Floradrain® FD 60 system, without penetrating the roof membrane or impairing the drainage

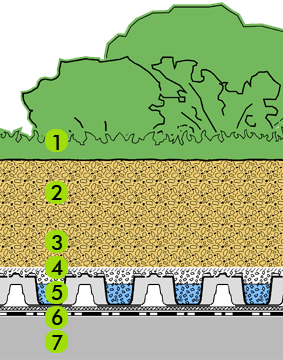

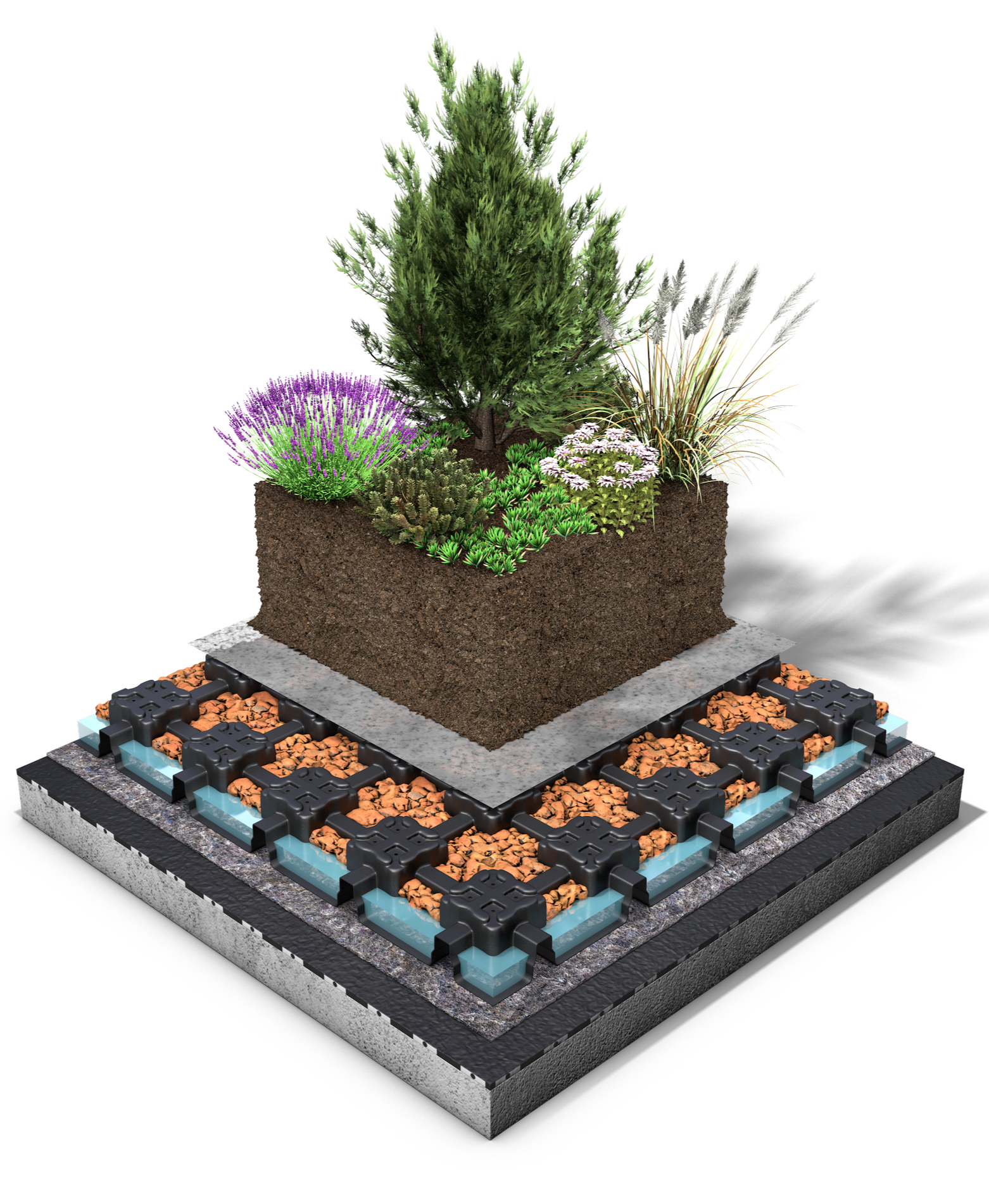

System Buildup

  1. Plant Material

  2. Growing Medium ZinCoblend-I (≥ 250 mm)

  3. ZinCo Filter Sheet SF

  4. ZinCo Floradrain FD60

  5. Zinco Protection Mat ISM 50

  6. ZinCo Root Barrier WSB100

  7. Roof Stucture - Waterproofing

Technical Data

  • Depth: ≥ 310 mm (12")

  • Water retention capacity: ≥ 143 L/m2

  • Saturated weight: ≥ 375 kg/m2 (77 psf)

  • Slope: 2-5 degrees

Technical Drawings
